4层框架结构办公楼,土木工程建筑结构毕业设计,长54.6米,宽16.5米,面积3564平方米
浏览量：1164
收藏量：0
浏览量：1164
收藏量：0

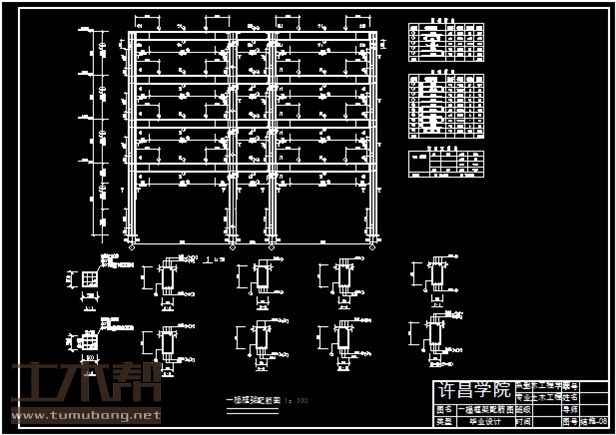

建筑长54.6m,宽16.5m.一榀框架层高3.6m,柱距7.2m,3跨,6.9m,2.7m,6.9m;

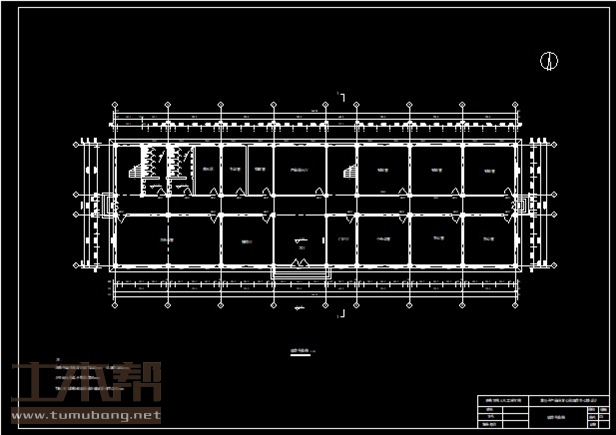

一层:大会议室14.4m*6.9m*1间,接待室7.2m*6.9m*1间,大厅7.2m*6.9m*1间,门卫室4.2m*6.9m*1间,小会议室7.2m*6.9m*1间,办公室7.2m*6.9m*2间,楼梯间3.6m*6.9m*1间,卫生间3.6m*6.9m*2间,茶水区3.6m*6.9m*1间,打印室3.6m*6.9m*1间,档案室3.6m*6.9m*1间,产品展示厅7.2m*6.9m*1间,楼梯间4.2m*6.9m*1间,实验室7.2m*6.9m*3间;
二至四层:办公室14.4m*6.9m*1间,办公室7.2m*6.9m*5间,大厅7.2m*6.9m*1间,办公室4.2m*6.9m*1间,楼梯间3.6m*6.9m*1间,卫生间3.6m*6.9m*2间,茶水区3.6m*6.9m*1间,打印室3.6m*6.9m*1间,档案室3.6m*6.9m*1间,楼梯间4.2m*6.9m*1间,实验室7.2m*6.9m*3间;
