6层框架结构住宅楼,土木工程建筑结构毕业设计,长90.04米,宽10.75米,面积5403平方米
浏览量：1216
收藏量：0
浏览量：1216
收藏量：0

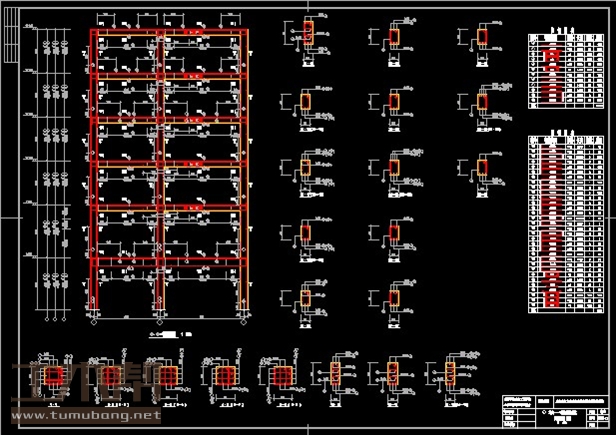

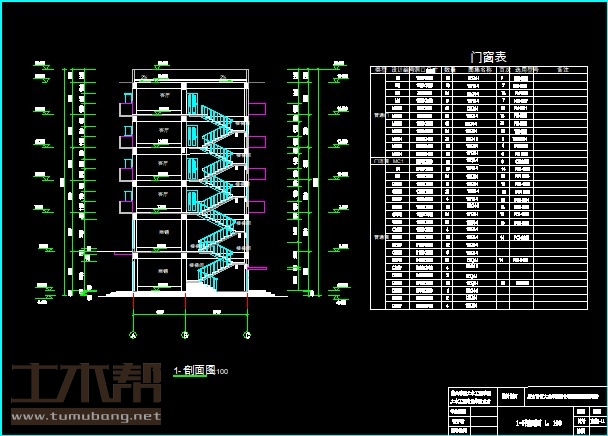

建筑长90.04m,宽10.75m.一榀框架一至二层层高3.6m,三至六层3m,2跨,跨度4.8m,5.7m;

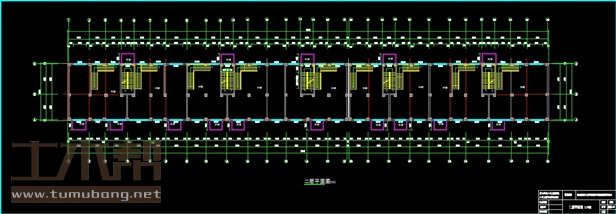

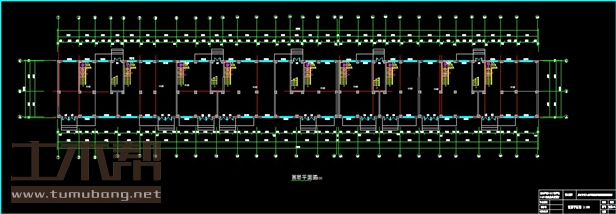

一至二层:商铺11.1m*10.5m*5间,商铺7.5m*10.5m*3间,商铺11.4m*10.5m*2间,楼梯间1.2m*5.7m*9间,楼梯间2.4m*5.7m*5间;

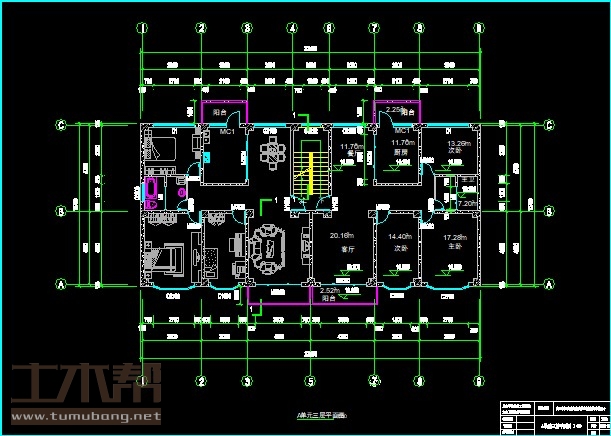

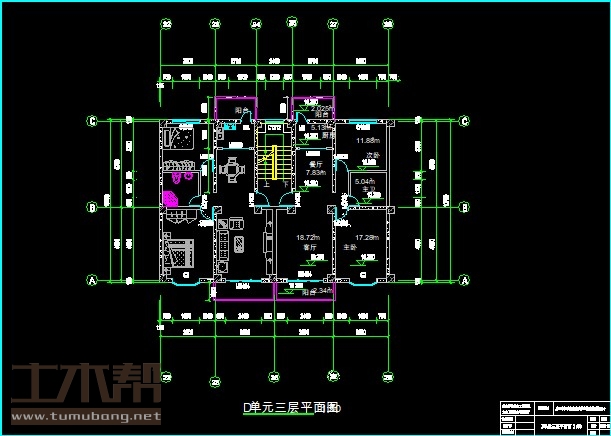

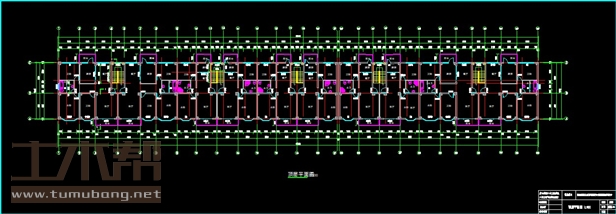

三至六层:主卧3.9m*4.8m*4间,次卧3m*4.8m*4间,客厅4.2m*4.8m*4间,阳台4.2m*1.2m*4间,主卫2.9m*2.4m*4间,次卧3.9m*3.3m*4间,厨房3m*3.9m*4间,阳台3m*1.5m*4间,餐厅3m*3.9m*4间,次卧3.6m*3.3m*6间,主卫2.55m*2.4m*6间,主卧3.6m*4.8m*6间,客厅3.9m*4.8m*6间,阳台3.9m*1.2m*6间,餐厅2.7m*3.9m*6间,厨房2.7m*1.8m*6间,阳台2.7m*1.5m*6间,楼梯间2.4m*5.7m*5间;
